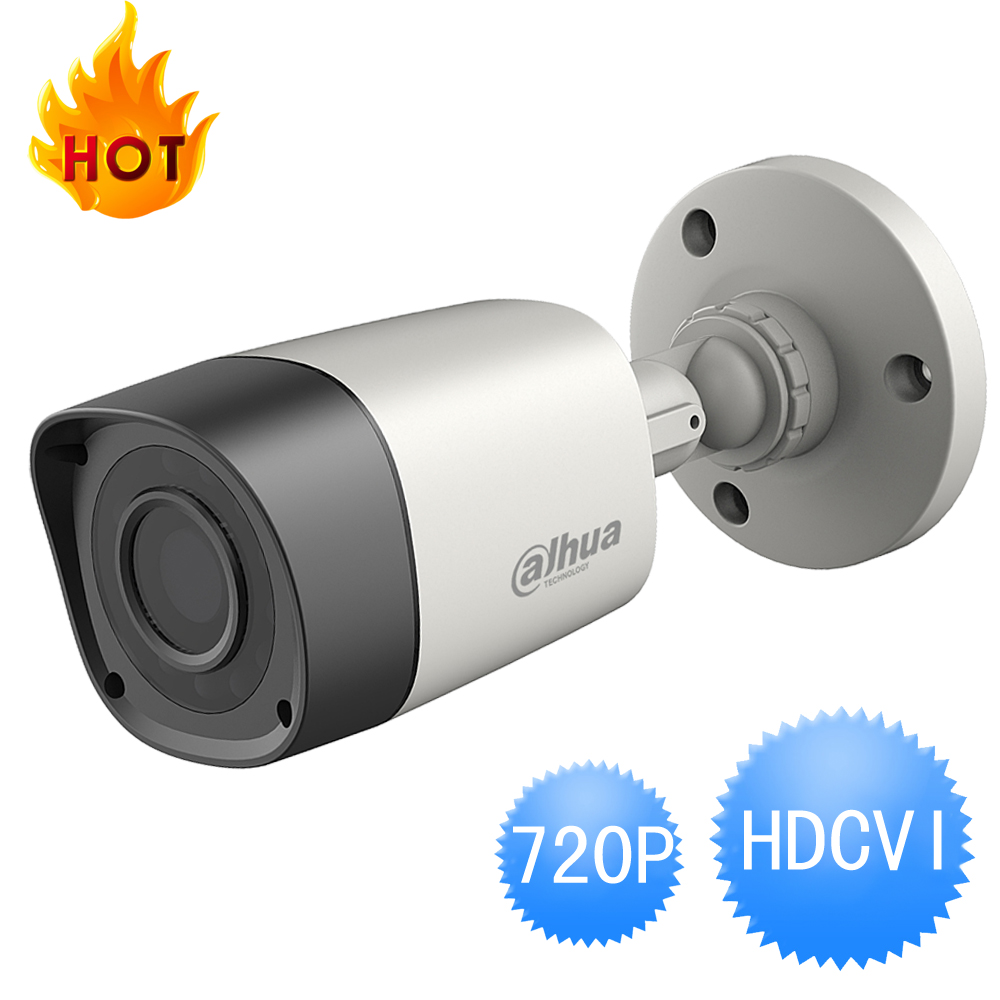

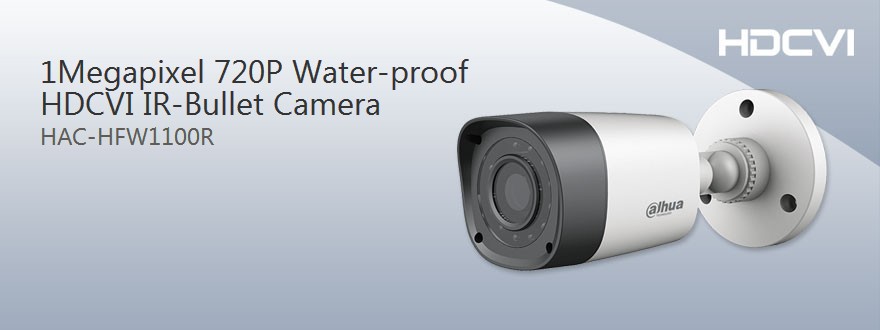

浙江大华720P HDCVI 高清同轴迷你摄像机

浙江大华同轴高清720P摄像机DH-HAC-1100R

产品概述
详细参数
资料下载

>1/2.9" 1Megapixel CMOS
>25/30fps@720P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V HTB1LfviHXXXXXaBapXXq6xXFXXXk

HFW11OOR .jpg .jpg

Model	DH-HAC-HFW1100RP	DH-HAC-HFW1100RN
Camera
Image Sensor	1/2.9" 1Megapixel CMOS
Effective Pixels	1280(H)×720(V)
Electronic Shutter	1/50s~1/100,000s	1/60s~1/100,000s
Video Frame Rate	25fps@720P	30fps@720P
Synchronization	Internal
Mini. Illumination	0.01Lux F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length	20m, Smart IR
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D
Lens
Focal Length	3.6mm (6mm optional)
Angle of View	H: 52.2º(79.7º)
Mount Type	M12
General
Power Supply	DC12V±10%
Power Consumption	Max 2.2W
Working Environment	-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP66

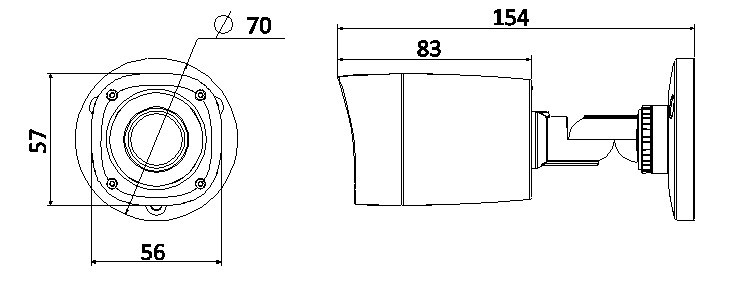

Dimensions(W×D×H)	F70mm×154mm
Weight	0.15kg
